API: List of Subnets

Overview

In this exercise you will list the cluster subnets. Later exercises will require the subnet uuid in the JSON body.

Note

Estimated time to complete: 5 MINUTES

Exercise: List the AHV subnets

  1. Click + in the main window to create a new tab-window

  2. Click the dropdown and select POST

    • v3 standardizes on POST for listing to offer server-side filtering, grouping, and sorting

  3. Enter the URL to list images

    • https://{{prism_central_ip}}:9440/api/nutanix/v3/subnets/list

  4. Configure basic authentication for this API call

    • Follow the same steps from the first exercise

    • v3 conforms to HTTP as a stateless protocol such that each API call is authenticated

  5. Set the media type to application/json

    • Follow the same steps from the first exercise

  6. Fill out the body

    • Click the Body tab

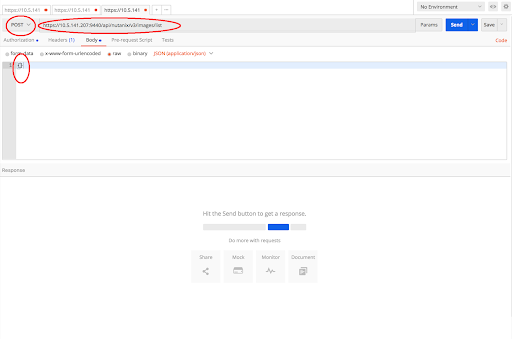

    • Copy or type an empty dictionary in the json body as seen below

    {}
    ../../_images/apimetajson2.png

  7. Click Send to submit the v3 API call

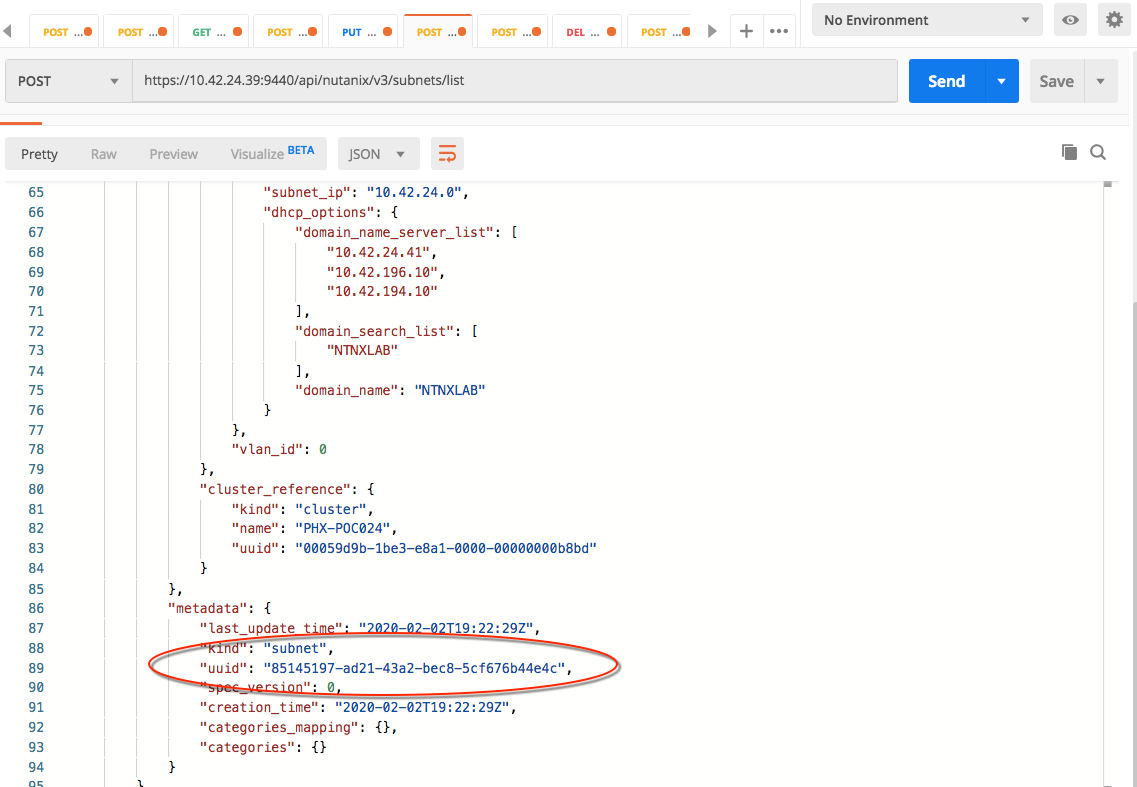

  • The intent response provides an array of subnet resources

  • Take note of the uuid for the Primary network in the metadata section

../../_images/subnetuuid.png
